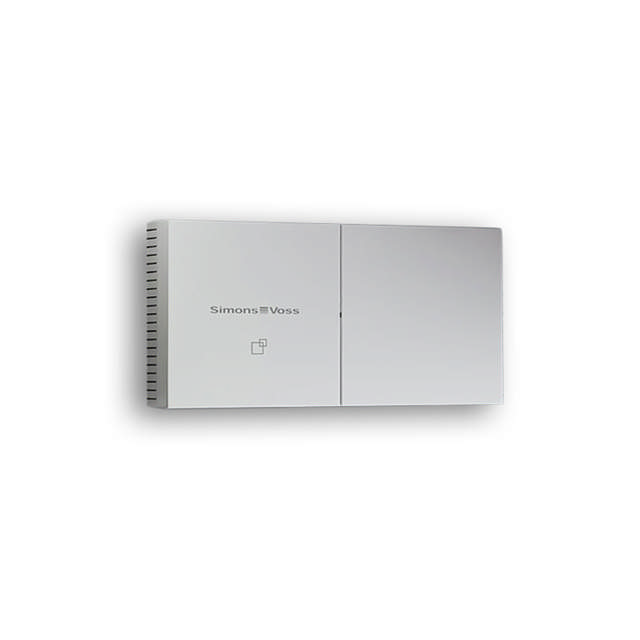

SI - Gateway Node - Ethernet >< 868MHz

Hub / Router for wireless communication with SmartIntego products

Note. Gateway Node should be mounted vertically for optimal signal strength.

• A Router can support 16 doors
• Range: up to 30 meters
• Up to 30 routers on one NOX central.
• Up to 480 wireless doors can thus be supported on one NOX central
• Converts from Ethernet to 868 MHz frequency
• Connects to the existing network structure
• Data transfer: 868 MHz frequency band and Ethernet
• Can be connected to Power over Ethernet (PoE)
• All interaction with the locks is reported to, and can be controlled from, the NOX central via the router.
• Including connection terminals for external power supply and external transmitting and receiving antenna
• Power supply: 12 VDC
• Power: max. 3 VA
• Power supply: PoE or via regulated power supply
• Dimensions: 172x86x33 mm.
• Transmission frequency: 868.xx – 870.xx
• Transmission power: max. 10 dBm (6.3 mW)
• Material: Light gray ABS plastic, UV-stable (polycarbonate)
• Color: 9/118645, same as RAL 9016 (Traffic white)

NOTE: SmartIntego products are not stock items, and therefore not covered by ARAS' return policy!
